Dependent on the offer of beverages, the space on the counter, and other
habits of the restaurant, our beverage dispensers are equipped with different types of
faucets to meet the requirements. The electronic control of our dispensing heads is
prepared to meet all the thinkable demands on the number of faucets, portions and
mixtures.
All parts of the
EGH-faucets coming into contact with the beverage are entirely constructed in alimentary
material type G.S.233 resp. in stainless steel, and are SK proved. Users can choose among
the below described faucets and if necessary also other taps prefered by the client resp.
dictaded by the beverage supplier can be considered, provided all national legal norms are
fulfilled.
Following faucets are available:
|
|
PREMIX-FAUCET
Mod. EGH-PM1 with
1 solenoid
valve,
1 entry with flow-control and
1 beverage outlet.
|
Application:
For e.g. 1 sodawater resp. 1 premix beverage.
|
|
POSTMIX-FAUCET
Mod. EGH-PM2 with
2 solenoid valves,
2 entries with flow-control and
1 postmix outlet. |
Application:
For e.g. 1 sodawater and 1 carbonated soft drink.
Advantage:
Different ratios of sodawater and syrup are possible as well various
portions are programmable.
|
|
POSTMIX-FAUCET
Mod. EGH-PM3 with
3 solenoid valves,
3 entries with pressure regulator,
1 postmix outlet. |
Application:
For e.g. 1 sodawater and 2 different carbonated soft drinks.
Advantage:
The soft drinks can be mixed among each other and extended with soda water,
as well different portions are programmable.
|
|
POSTMIX/PREMIX-FAUCET
Mod. EGH-PM4 mit
4 solenoid valves,
2 entries with pressure regulator,
2 entries with flow-control,
1 postmix outlet,
2 seperated premix outlets. |
Application:
For e.g. 1 sodawater, 1 soft dring, 1 red wine, 1 white wine.
Advantage:
Every portion and mixture among the connected beverages lines are possible.
It is not necessary to move the glass to an other tap when pouring out mixtures.
|
|
BIER-TAP
Mod. EGH-BH2 with
2 coils and
1 froth valve.
All the parts coming into contact with the beverage are entirely constructed in stainless
steel, and can easily be dismantled by hand without removing the tap from ist support. |
Application:
For e.g. taping beerAdvantage:
Beer can be taped either continously, or generation of froth is possible by a second
seperated coil. Different ratios of mixtures and portions are programmable.
|
|
PREMIX-TAP
Mod. EGH-BH1 with
1 coil
(without froth coil).
All the parts coming into contact with the beverage are entirely constructed in stainless
steel, and can easily be dismantled by hand without removing the tap from ist support.
|
Application:
suitable for e.g. 1 premix soft drink, wine, and also all the types of beer
which don't tend to bubble. Various portions for every beverage are programmable.
Example
of a typical faucet arrangement:

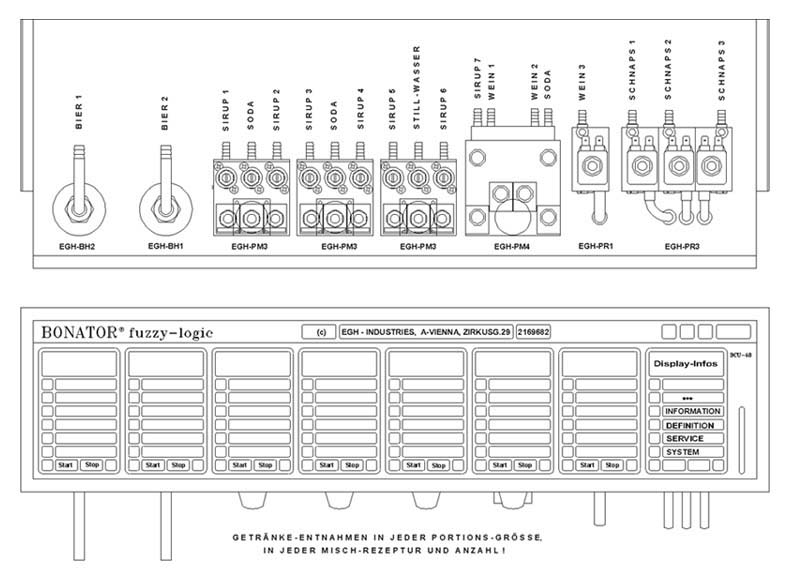

Below
drawing shows a BCU48 electronic dispensing head with a typical arrangement of faucets
suitable for an average sized company.
The
arrangement has the capacity to pour out following 17 beverages (flavours) in every
conceivable portion, as well it is also possible to use the flavours as ingredient for
defined mixed drinks.
- 5 non-alcoholic
carbonated postmix softdrinks (e.g. Cola, Fanta, Sprite, Tonic, Ginger Ale, etc.)
- 2 non-alcoholic
silent postmix softdrinks (e.g. Apple, Orange, etc.)
- 2 kinds of beer (e.g. Stout, Ale)
- 3 kinds of wine (e.g. red, white, special)
- 3 spirits (e.g. fruit schnapps, rum, brandy)
- 1 soda water
- 1 tap water chilled
The use of
the faucet EGH-PM4 proves in the below shown dispenser configuration as especially
advantageously, because this single tap allows already to pour out 9 different kinds of
beverages, respectively to mix them among each other.
For instance following beverages can be poured out
from the faucet EGH-PM4:
- wine red pure
- wine white pure
- soft drink pure
- soda pure
- wine red + soda
- wine red + soft drink
- wine red + wine white
- wine white + soda
- wine white + soft drin
Figure shows
fuzzyLogic dispensing head :
Total width: 710 mm |
|
